Features:
| Model: | W070P40H1LN-Board | Diagonal Size: | 7.0 inch |
| glass: | Innolux; BOE; PANDA; hannstar | Factory: | whtc |
| Resolution: | 1024*600 | Outline Dim: | 165.25*104.89*2.8 (mm) |
| Interface: | LVDS /FPC 40pin | Luminance: | 300cd/m2 |
| Viewing Angle: | 70*70*50*70 | Contrast Ratio: | 500:1 |
| Weight: | 110g | Package Box: | 80pcs / box |

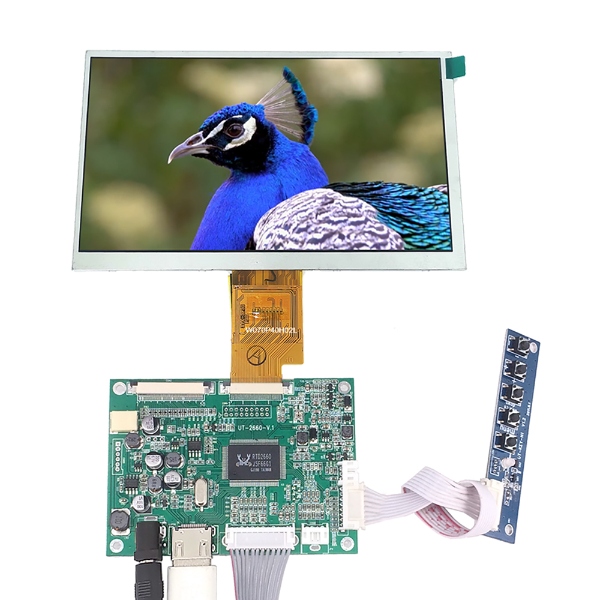

Driver board parameters:：
1, 1x AV input,
2, 1x VGA input,
3, 1x HDMI input,
4, Power: 9-12V input,
5, speaker （optional)
6, keyboard(Optional)
7, connection cable (Optional)
Application industry:
driving recorder, vehicle, security, medical equipment, smart home and other products
