    DESCRIPTIONS:


     * Supports built-in RTC
    * Supports GPIO
    * SD Card interface: support max max 32G Micro TF/SD card (FAT32 file format)
    * Flash data storage space: 32MB
    * EEPROM: 1024 bytes
    * RAM: 8192 bytes
    * Instruction buffer: 1024 bytes
    * Color: 65K (65536) colors
    * Resolution: 480×320 pixel
    * Adjustable Brightness: 0~180 nit- the interval of adjustment is 1%

    Product Paramenters

    Nextion Type

    Enhanced Series

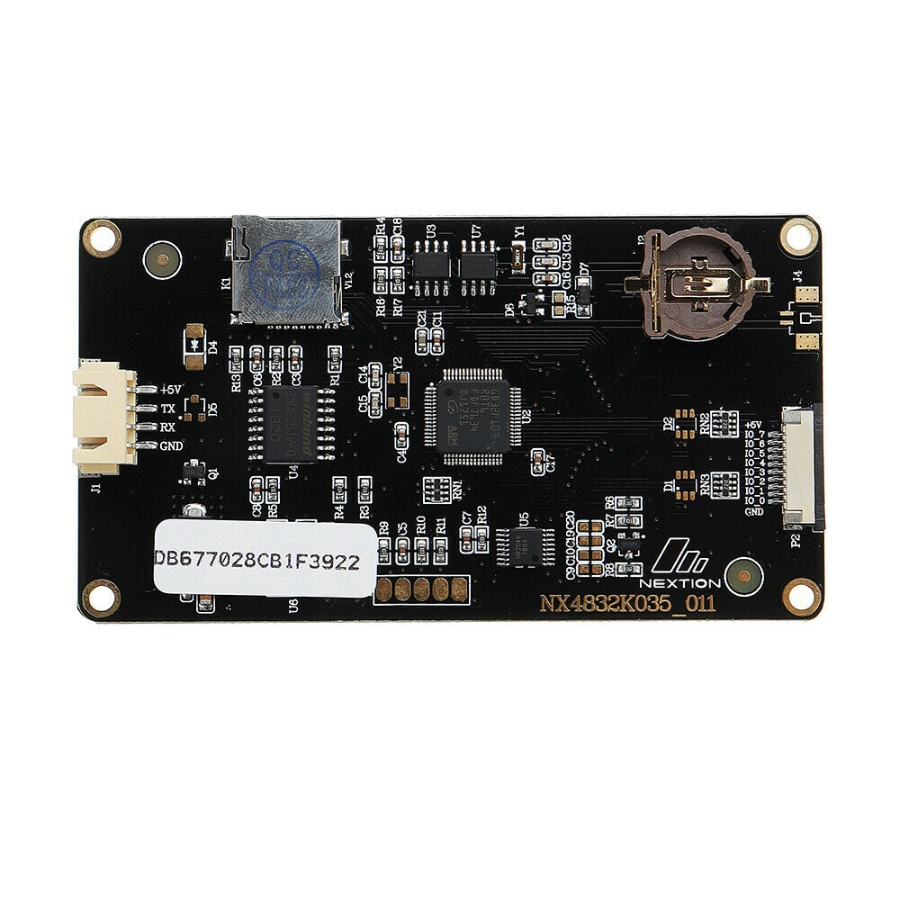

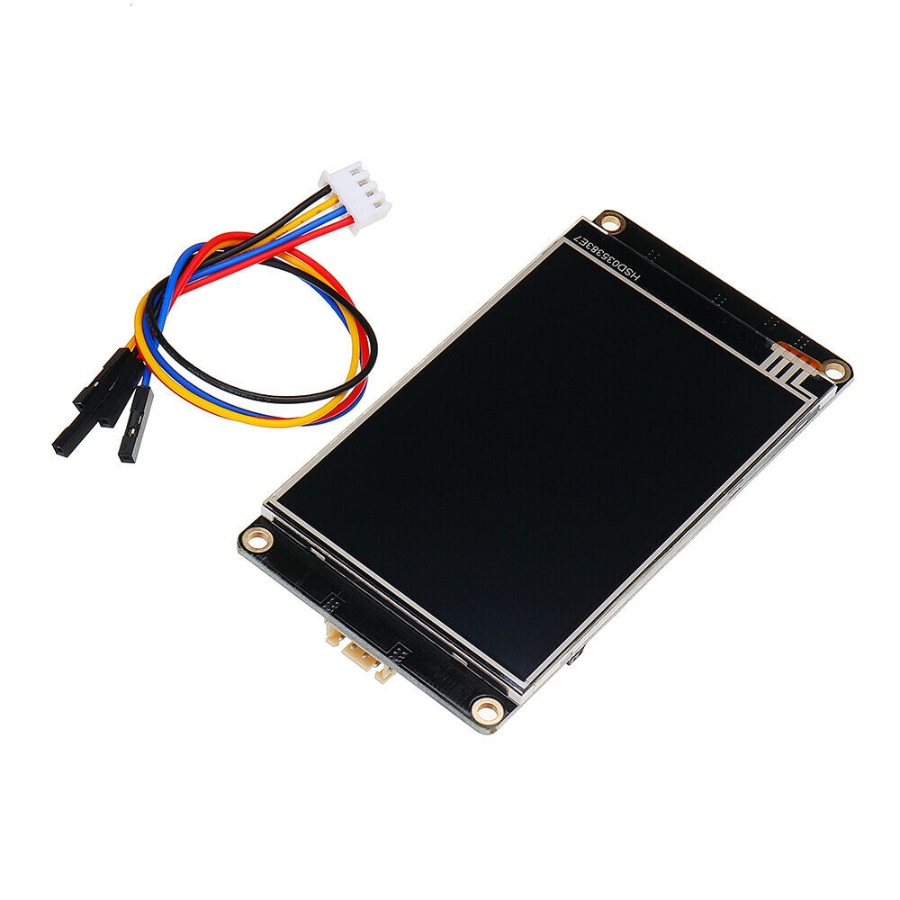

    Nextion Models

    NX4832K035_011N (N: No touch)

    NX4832K035_011R (R: Resistive touchscreen)

    Color

    64K 65536 colors

    16 bit 565, 5R-6G-5B

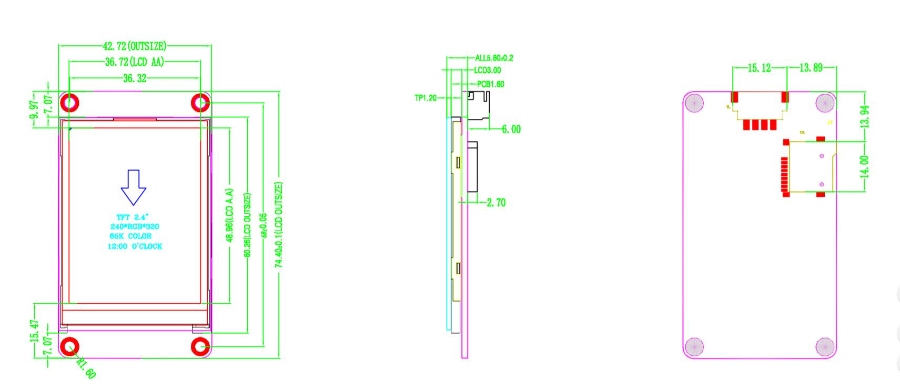

    Layout size

    100.5(L)×54.94(W)×4.25(H)

    NX4832K035_011N


    100.5(L)×54.94(W)×4.25(H)

    NX4832K035_011R

    Active Area （A.A.)

    85.5mm(L)x54.94mm(W)


    Visual Area (V.A.)

    73.44mm(L)×48.96mm(W)


    Resolution

    480x320

    Also can be set as 240x320

    Touch type

    Resistive


    Backlight

    LED


    Backlight lifetime(Average)

    >30,000 Hours


    Brightness

    200nit (NX3224K024_011N)

    0% to 100%, the interval of adjustment is 1%

    180nit (NX3224K024_011R)


    Weight

    38.2g (NX4832K035_011N)


    48.2g (NX4832K035_011R)


    Working Temperatuere

    -20 ℃ -70℃


    Storage Temperature

    -30 ℃ -85℃


    Electronic Characteristics

    Number

    Test Conditions

    Min

    Typical

    Max

    Unit

    Operating Voltage


    4.75

    5

    7

    V

    Operating Current

    VCC=+5V, Brightness is 100%

    -

    145

    -

    mA


    SLEEP mode

    -

    15

    -

    mA

    Power supply recommend: 5V, 1.0A, DC

    For more technical resources please contact us please ！

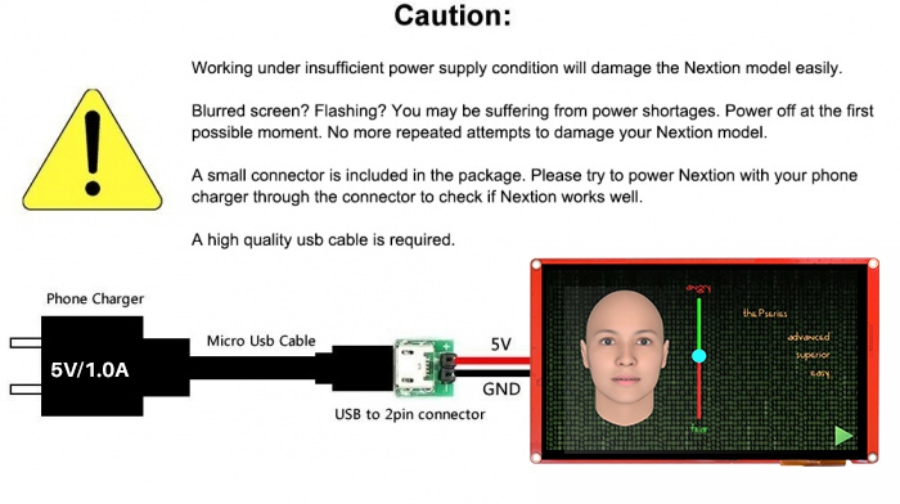

    Note: the small power supply test board and connecting wire inside the package allow you to test if the electrical supply is
    enough or not. See the image below on how to use it.
