    DESCRIPTIONS:

    * Visual Area: 108mm(L)×64.8mm(W)
    * Layout size: 133.5(L)×84(W)×6.8(H)
    * Touch type: Resistive
    * Backlight: LED
    * Backlight lifetime (Average): >30,000 Hours
    * Net Weight: 128 g
    * Recommended power supply: 5V 1A
    * Certificates: CE/EMC, RoHS

    Nextion Type

    Enhanced Series

    Nextion Models

    NX8048K050_011N (N: No touch))

    NX8048K050_011R (R: Resistive touchscreen)

    Color

    64K 65536 colors

    16 bit 565, 5R-6G-5B

    Layout size

    95(L)×47.6(W)×4.35(H)

    NX8048K050_011N


    133.50(L)×84(W)×6.8(H)

    NX8048K050_011R

    Active Area （A.A.)

    133.50(L)×84(W)×5.4(H)


    Visual Area (V.A.)

    69.60mm(L)×41.76mm(W)


    Resolution

    800x480

    Also can be set as 480x800

    Touch type

    Resistive


    Backlight

    LED


    Backlight lifetime(Average)

    >30,000 Hours


    Brightness

    200nit (NX8048K050_011N)

    0% to 100%, the interval of adjustment is 1%

    180nit (NX8048K050_011R)

    0% to 100%, the interval of adjustment is 1%

    Weight

    108g (NX8048K050_011N)


    128g (NX8048K050_011R)


    Working Temperatuere

    -20 ℃ -70℃


    Storage Temperature

    -30 ℃ -85℃


    Electronic Characteristics

    Number

    Test Conditions

    Min

    Typical

    Max

    Unit

    Operating Voltage


    4.75

    5

    7

    V

    Operating Current

    VCC=+5V, Brightness is 100%

    -

    410

    -

    mA


    SLEEP mode

    -

    15

    -

    mA

    Power supply recommend: 5V, 1.0A, DC

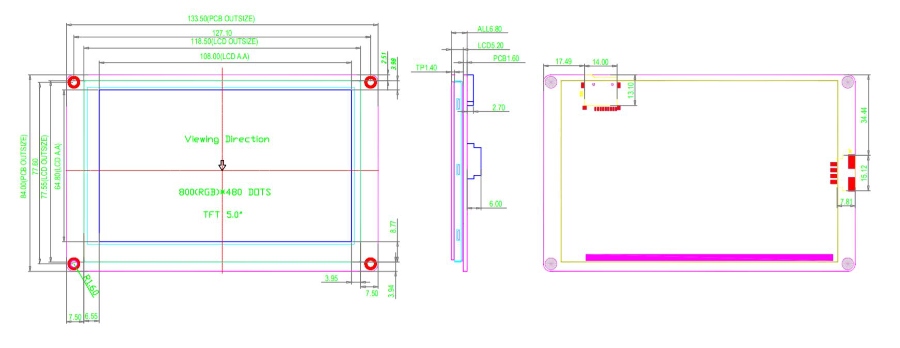

    NX4024032_011 Dimension

    ————————————————————————————————————————————————————


    For more technical resources please contact us please ！

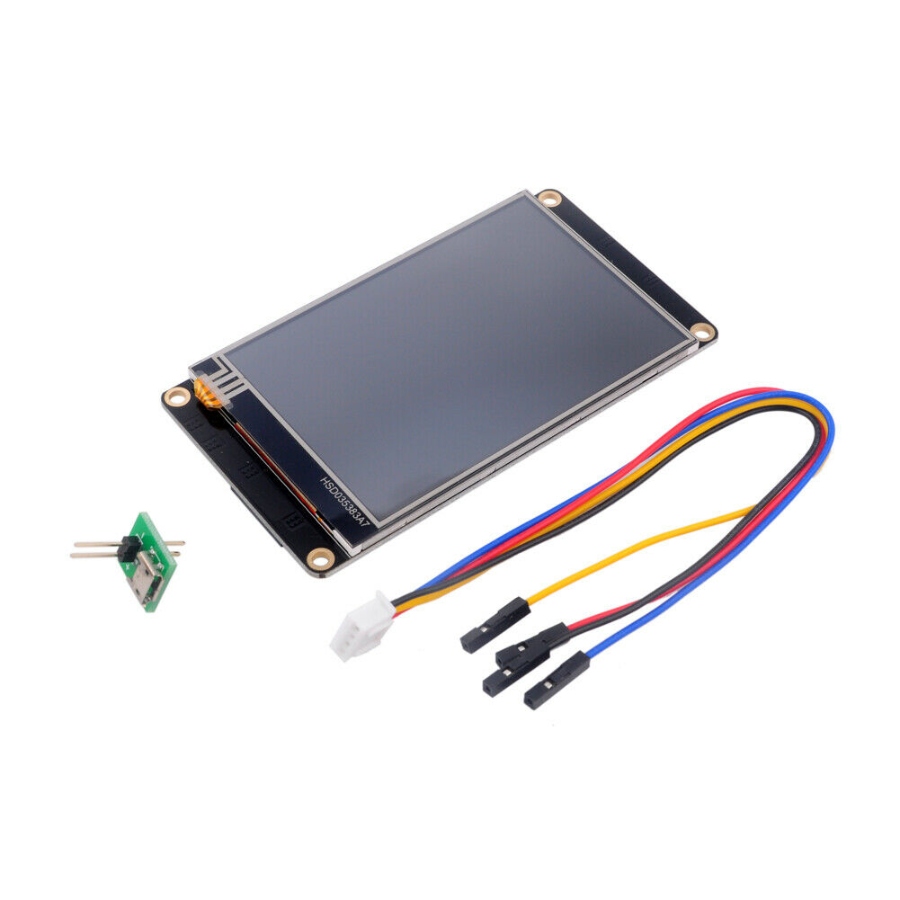

    Note: the small power supply test board and connecting wire inside the package allow you to test if the electrical supply is
    enough or not. See the image below on how to use it.
